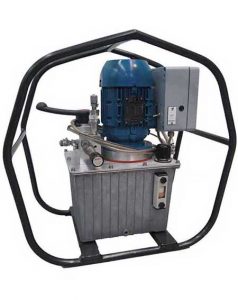

Carrying handle option. Roll cage option.
HYDAC Electric Hydraulic Tensioning Pump is a compact hydraulic power unit that has 2 functionalities (high pressure – low flow and high flow – low pressure) depending on the load, and it’s built into the radial piston pump.
The unit comes with a manual directional control valve, a bleed down needle valve (to control lowering speed) and a remote pressure control valve. An optional roll cage or carrying handle are available upon request.
The power unit can be assembled with 6.5 litres or 12 litre hydraulic tank.
Applications:
- Bolt tensioning
- Concrete reinforcement
- High pressure jacking
- Rescue tool
Special Features:
- Custom designed manifold
- Bieri hydraulic components
- High / Low radial piston pump
- Pendant and local control on electric box

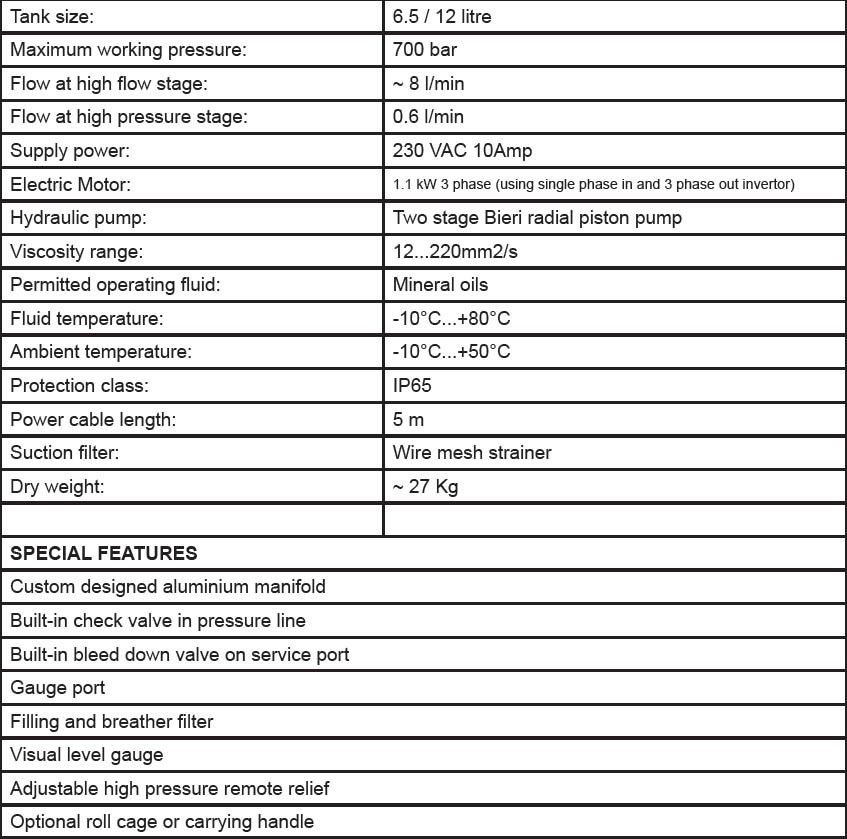

Technical Specifications:
