TTControl’s HY-eVision² digital communication interface family sets new standards with respect to maximum resolution and user-friendliness.
The modular operator terminals are available in two versions: a large, 10.4-inch variant with touchscreen (HY-eVision² 10.4) and a smaller 7-inch version (HY-eVision² 7.0), with or without a touchscreen.
Both rugged displays have a powerful built-in display controller and are suitable for harsh off-highway vehicle conditions.
The display can be mounted onto a vehicle’s dashboard or through a RAM mount around the vehicle cockpit in a landscape or portrait position.
As to their design, it enables the versions to become the central operator human machine interface (HMI) in mobile equipment, offering optimised visualisation of various in-vehicle parameters.
Object-oriented programming concepts allow fast and easy adoption of the HMI to different languages. It also allows specific additions to transparency effects, graphics library, and Unicode fonts.
Key display characteristics
The displays include the following key characteristics:
- Excellent sunlight readability
- Best-in-class CPU performance and boot-up time
- Capacity to display two simultaneous video feeds – everything in sight – to improve safety while working
- Ability to display and generate PDF documents
- Creation of PDF files
- High-end graphics (picture-in-picture, overlay, 3D, transparency effects)
- Sleep mode – wake up within just over 0.5 seconds.
- Software update of display and connected ECUs via USB
- Up to four CAN interfaces
- GPS, GSM, and WLAN enabled (fleet management/remote maintenance and software updates)
- 10 programmable control keys can be utilised to provide an HMI that is simple to use
- Fully user programmable
- Programable with Codesys 3.x
- Software debugging capabilities
- Robust and easy to clean
Display products available
Display products available include the following:
Operator interface features
Both rugged HMI panels have a powerful built-in display controller and are perfectly suited for the harsh conditions in off-highway vehicles due to their aluminium die-cast housing (10.4″) or aluminium front (7″).

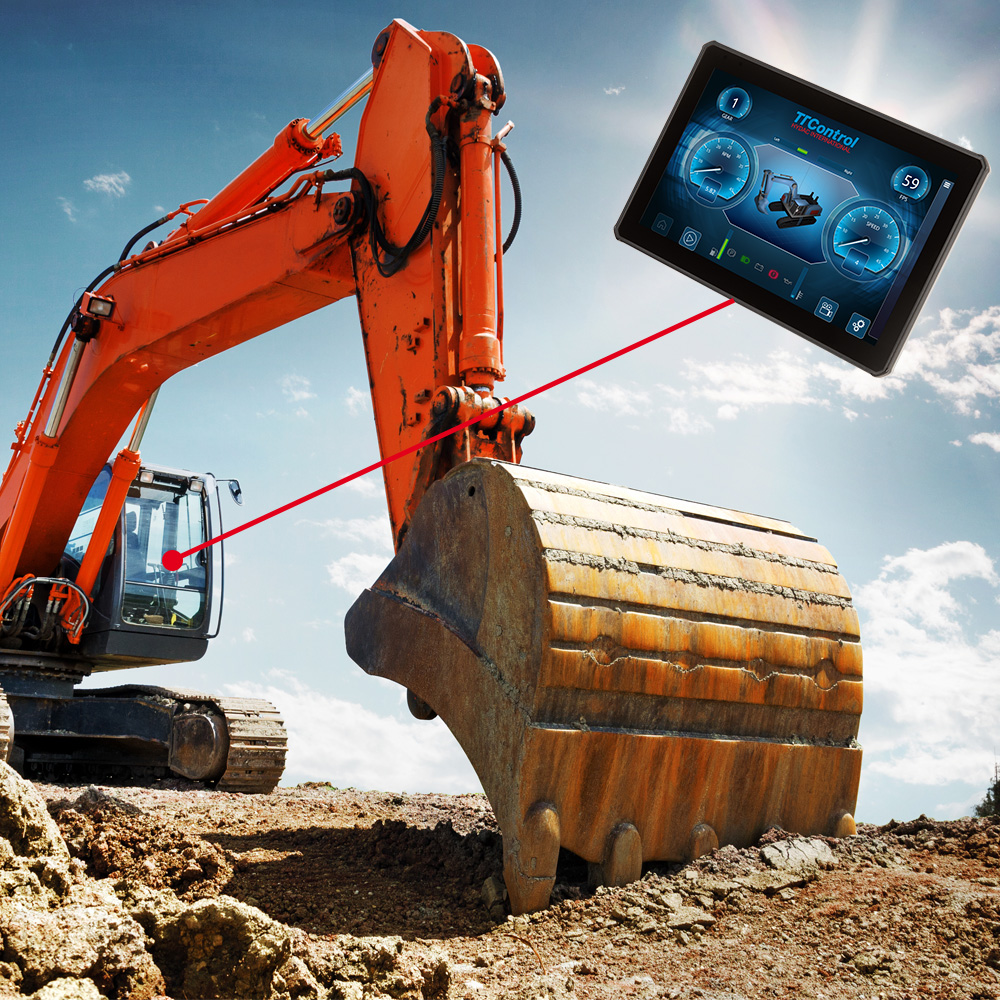

The operator interface devices are designed to become the central operator panel in mobile equipment such as forest harvesters, excavators, or large drilling machines.
The HY-eVision² human-machine interfaces act as the master within a sophisticated, networked control system, giving the operator the most ergonomic control over a maximum number of functions.
The HY-eVision² operator panels offer optimised visualisation of the various in-vehicle parameters like speed, temperature, and sensor data in real-time.
Object-oriented programming concepts allow fast and easy adaption of the HMI panel to different languages.
Specific additions to the operator interface like transparency effects, graphic library, and Unicode fonts – such as Chinese characters – provide the ability to fully customise the display to customer needs and to differentiate from the competition.
The TTControl Visualization Manager is available as Codesys plug-in with PDF viewer, creator and camera picture support. In addition, it is optimised to CPU hardware acceleration.
Third dimensional effects like transparency and tilting, as well as dynamic effects like animation, are fully supported by the operator interfaces.
TTControl is a joint-venture company of TTTech Group and HYDAC International
For more information, visit: https://www.hydac.com.au/displays-operator-interface.html.
