Mobile controllers for hardcore off-highway applications

04/10/2022

HYDAC offers a wide range of TTControl mobile controllers that answer to the demanding off-highway vehicle work environment.

The off-the-shelf high-performance processors from TTControl range from powerful Codesys high-end controllers to cost-effective, mid-sized electronic control units (ECUs).

The portfolio includes controllers for safety-critical applications, certified according to Directive 2006/42/EC.

The products fulfil safety integrity/performance levels up to SIL 2 and PL d.

Maximum reliability under harsh conditions

All devices are tested under extremely harsh conditions to ensure their durability and reliability.

The electronic circuits also benefit from a protective and compact, automotive-style aluminium pressure die-cast housing.

Interconnection of ECUs possible

The interconnection of several ECUs is possible via CAN bus to form a network. The programming of the units is either in C or in Codesys.

Key mobile controller characteristics

Key mobile controller characteristics include the following:

Suitable for a wide range of applications
Certified according to EN ISO 13849 (PL d) and IEC 61508 (SIL 2)
Compliant with functional safety standards
High-performance processors
Software-configurable I/Os for many different sensors and actuator types
A broad range of open programming environments, including C and Codesys (V2.3, V3, V3 Safety SIL 2)

Available mobile controller products

Safety certified controllers

Safety certified controllers include the following:

	TTC 2300 family The TTC 2300 family includes mid-sized control units for smart mobile machines that are functional, safety-certified, high performance oriented, and supportive of faster development cycles.

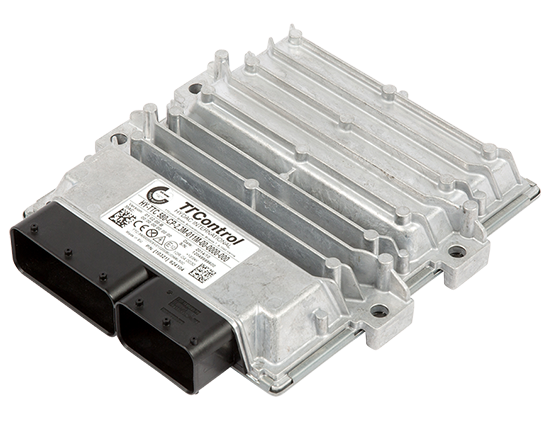

	HY-TTC 508/510/540/580/590 The HY-TTC 500 family consists of high-end safety control units designed to satisfy a wide range of high-end applications like construction and agricultural machines.
	HY-TTC 94 HY-TTC 94 is the top-level ECU of the HY-TTC 50 controller family, offering enhanced flexibility and safety.
	HY-TTC 30S/32S The HY-TTC 30S and HY-TTC 32S controllers are safety certified variants of HY-TTC 30 and HY-TTC 32.

General purpose controllers

	HY-TTC 77 HY-TTC 77 is a powerful electronic control solution for the off-highway industry with 12V power supply.
	HY-TTC 71 HY-TTC 71 is an ideal controller for smaller machines such as wheel loaders, excavators, or rollers with 12V power supply.
	HY-TTC 60 HY-TTC 60 is part of the HY-TTC 50 controller family, offering unprecedented flexibility.
	HY-TTC 50 HY-TTC 50 is a powerful yet cost-effective ECU.
	HY-TTC 30/32 HY-TTC 30/32 is a compact control unit specifically developed for use in cost-sensitive applications or smaller machines.
