TTControl offers TTC 48XS and TTC 30X safety-certified I/O modules for the off-highway and mobile machinery markets.

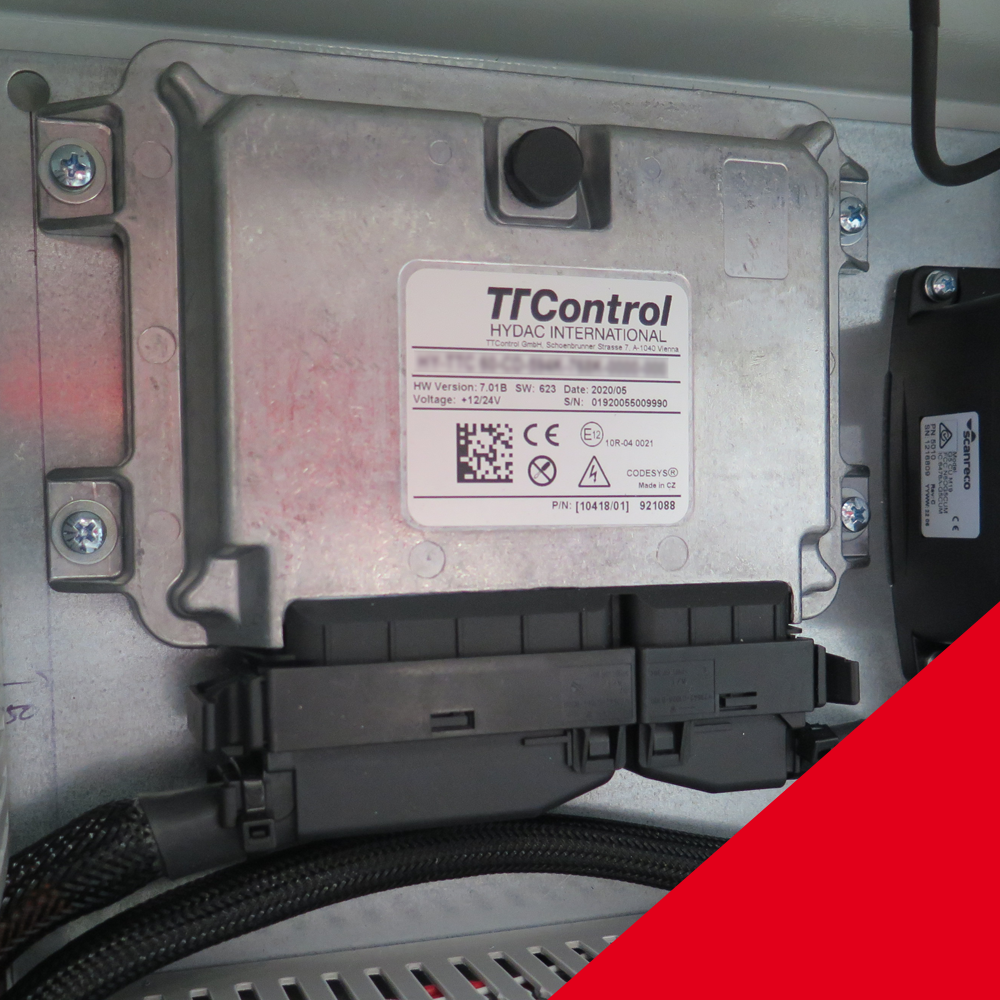

TTC 48XS
The TTC 48XS is an intelligent safety I/O module for extending the number of I/Os in mobile applications. The I/O module acts as a slave and is used in combination with, and controlled by, a master electronic control unit.
It communicates via a standardised CANopen protocol, parameterised according to CiA DS 401. It is compliant with European Standard EN 50325-5 for CANopen safety and developed in accordance with the international standard EN ISO 13849 on functional safety, performance level (PL) d.
One or more I/O modules can be used in addition to the master control unit in a modular way.
This distributed architecture makes the design and assembly of different vehicle variants possible and more cost and time effective.
In addition, cabling is simplified and more economical.
Another key advantage is, that it is possible to set up a distributed system where I/O modules (TTC 48XS) take over safety-relevant functions.
The TTC 48XS is delivered with ready-to-run software. The application must be implemented for the master only, and interfaces with the slave module via CANopen safety. This makes the setup user-friendly and saves development time.
The TTC 48XS, part of a complete and compatible product family, is protected by a compact, automotive-style housing suited to mobile applications in harsh environments.
TTC 48XS key benefits
Key benefits of the TTC 48XS include the following:
- EN ISO 13849 (PL d)
- Easy integration and usage
- CANopen safety compliant
- Additional watchdog CPU
- Automotive-style housing suited for rough operating conditions
TTControl is a joint-venture company of TTTech and HYDAC International, offering control systems and operator interfaces for mobile machinery and off-highway vehicles.
The TTC 48XS and TTC 30X can be purchased via HYDAC’s online store at: ttps://www.hydac.com.au/products/onlinestore.html
For more on the TTC 48XS and TTC 30X, visit: https://www.ttcontrol.com/products/io-modules/safety-certified-i-o-modules/
